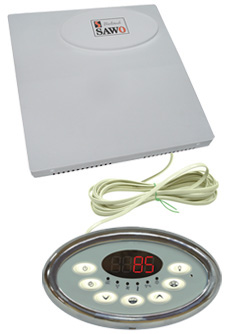

INNOVA CLASSIC - SEPARATE CONTROL UNIT
 |
|
|
Innova Classic separate control unit with 15kW capacity has LED display and seven buttons for easy usage. It has features like door sensor function and timers as well as smart energy saving and even power distribution.
Innova Classic separate control unit comes with temperature sensor and over-heat protection fuse with holder and 4m silicon connection cable. The package includes a power controller and a separate control panel and the two are connected with a cable.
|
|
| Innova Classic - Built-in Control Unit |
|
 |
The Innova built-in control unit is a power controller and a control panel in one slim enclosure. The Innova Classic Built-in has all the same features than the separate model.
It has 15kW capacity and features like door sensor function, timers as well as smart energy saving and even power distribution.
Innova Classic control unit comes with temperature sensor and over-heat protection fuse with holder and 4m silicon connection cable. |
Innova Features:
- Switching capacity of 15kW (3 x 5kW)
- Display of cabin and preset temperature and
humidity
- Single phase operation with up to 9kW switching
capacity
- Individual control of heating elements
- Precise maintaining of set temperature
- Even utilization of heating elements
- Maximum sauna session time of 4, 6, 12, 18 or 24h
adjustable through hardware configuration
(restrictions according to IEC/EN 60335-2-53 apply)
- Sauna temperature range 40-110°C
- Self-learning pre-run timer
- Key-lock function
|
| Technical Data |
|
Description |
Power Rating |
Remarks |
| Control |
|
|
Rated Power 3 Phases |
15kW AC1 (3x5kW) |
|
Rated Voltage3 Phases |
400V 3N~ |
|
Rated Power Single Phases |
9kW AC1 |
|
Rated Voltage Single Phases |
230V 1N~ |
|
Frequency |
50/60Hz |
|
Switching capacity per phase |
21A |
|
Sauna temperature range |
40-110°C |
|
Maximum session time(preset) |
4,6,12,18,24h |
Restrictions apply according to IEC/EN 60335-2-53 |
Dimensions INNOVA S types |
|
|
User Interface |
(W) 180 x (H) 105 x (D) 31 |
|
Power Controller |
(W) 265 x (H) 245 x (D) 75 |
|
Dimensions INNOVA B types |
(W) 265 x (H) 245 x (D) 75 |
|
Weight INNOVA S types |
|
|
User Interface |
150g (Touch) |
|
Power Controller |
1500g |
|
Weight INNOVA B types |
1630g(Touch) |
|
| Steamer |
|
Optional |
Rated Power 3 Phases |
5kW AC1 |
|
Rated Power Single Phases |
3kW AC1 |
|
Rated Voltage |
230V 1N~ |
|
Switching capacity |
21A(3 Phases), 13A (1 Phase) |
|
Maximum sauna temperature for steamer operation |
80°C or *55°C
*Depending on the type of Sensor 2. |
|
Automatic water filling |
|
Optional |
Automatic drain valve |
|
Optional |
| Cabin Light |
|
Dimmer optional |
Rating |
230V 1N~,100W AC1 |
|
| Fan |
|
Optional (with speed control) |
Rating |
230V 1N~,0.5A |
|
| Power Extension Unit |
|
Additional Power expansion to maximum of 30kW |
Rated Power 3 Phases |
15kW AC1(3x5kW) |
Rated Voltages 3 Phases |
400V 3N~ |
Frequency |
50/60Hz |
Switching capacity per phase |
21A |
|
| Sensor |
|
Dimmer optional |
Bench Temperature Sensor |
|
|
| Bench Sensors |
|
|
Bench Temperature Sensor |
|
Optional |
Bench Combined Temperature -
Humidity Sensor |
|
Optional |
|
